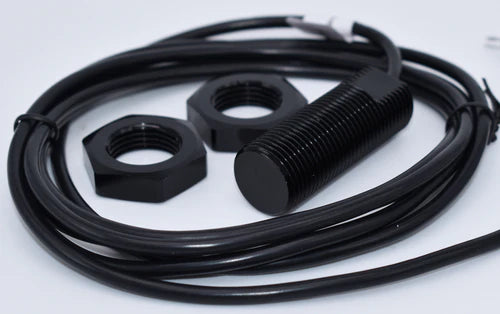

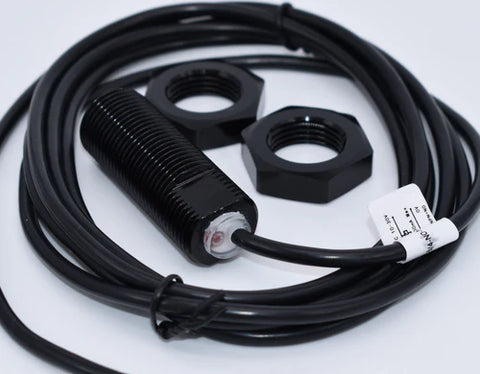

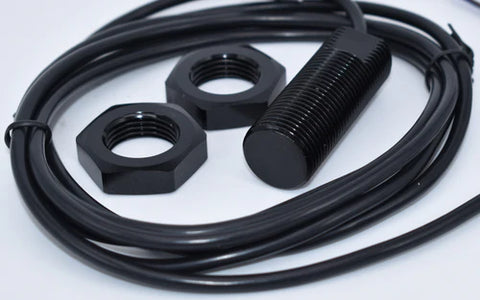

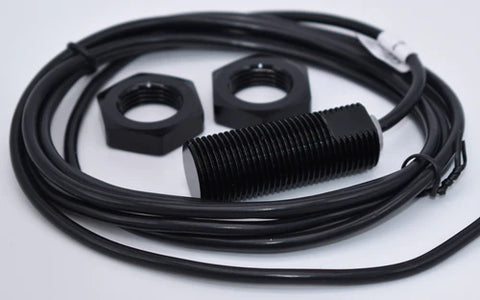

3/4 X 16 HALL EFFECT CRANKSHAFT SIGNAL SENSOR

• Triggered by magnets (Not ferrous material)
• 3/4 X 16 body
• Built in LED light for easy setup
• Nickel plated
• Detection range 0.1MM to 10MM
• Flush mount
• Supply voltage 10V-30V
• Short circuited/reverse protection built in.
• Working temperature -13F to 176F
• IP67 rated (water proof)
• Normally open signal
• Max switching frequency 1000HZ

wiring:

Brown = power supply (10-30VDC)

Blue = Clean ground

Black = Signal wire  (Outputs 0V) to data logger.
