7/16”-20 UNF Female 100 PSI Pressure Sensor PN: 7990100-716

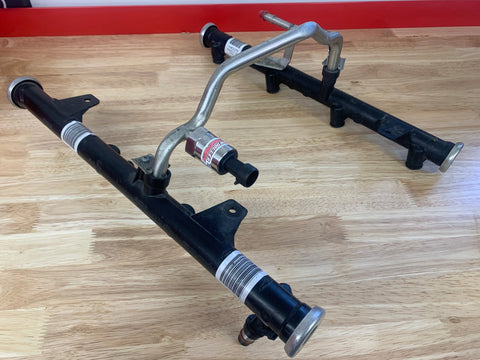

* Specifically for LS 4.8, 5.3, 5.7, and 6.0 with stock fuel rails.
*7/16”-20 UNF Female (commonly referred to as -4AN)

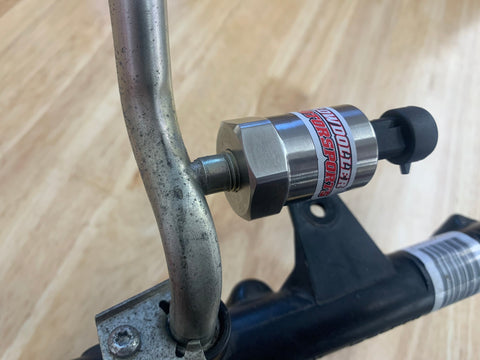

* Sensor has built in schraeder valve nipple. No need to remove stock schraeder valve.
accuracy is 0.5% across the full scale
0-100 PSI pressure sensor
0.5V to 4.5V
Heavy duty Stainless steel body
Includes GT150 packard connector, pins, and grommets. (Pre-wired cable sold separately)
Compatible with all EFI and data logging systems.
