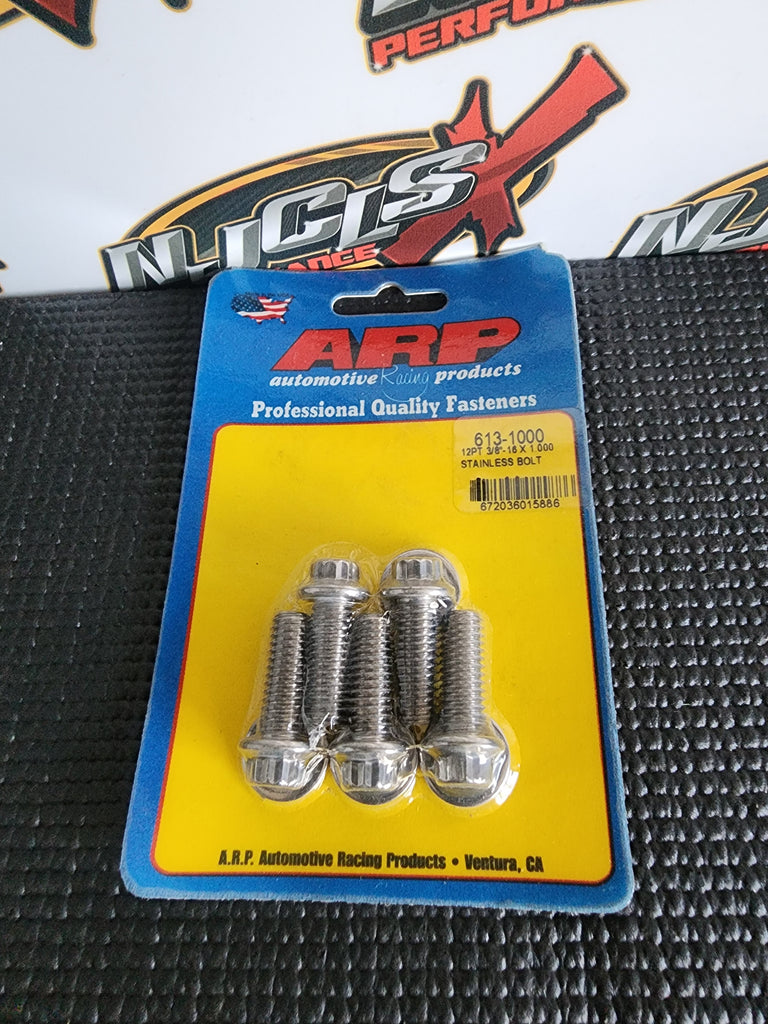

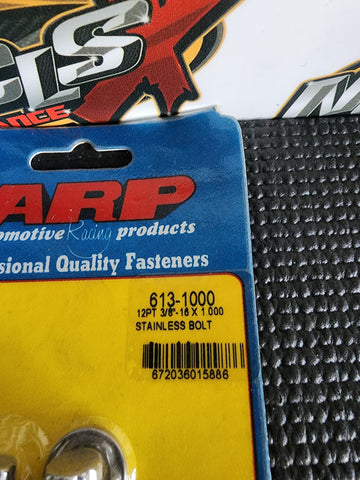

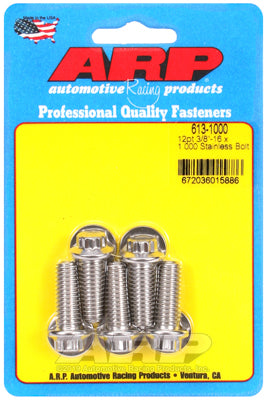

ARP Kit #: 613-1000 SAE Bolt Kit ARP Stainless 3/8˝-16 1.000˝ UHL Socket Size: 3/8 12pt

  • Sale
  • Regular price $60.00 AUD


ARP Kit #: 613-1000

SAE Bolt Kit
ARP Stainless
3/8˝-16
1.000˝ UHL

Socket Size: 3/8 12pt

Torque Value*: 45 ft-lbs (61 Nm)


1 UHL 1.000˝ 5 Grip Diameter 3/8˝
2 Thread Length 1.000˝ 6 Wrenching (reduced) 3/8˝
3 Grip Length n/a˝ 7 Head Height (reduced) 0.300˝
4 Thread Diameter-Pitch 3/8-16 8 Collar Diameter (reduced) 0.620˝

Dim Kit Number Jobber Price** Add to List
5-Pack: 613-1000 19.91



*Torque notes: The torque values represented here are intended to be for general information only, not for specific installations. On specific installations, where the supplied instructions deviate from the torque values listed here, always follow the specific instructions packaged with the kit. Always lubricate the fastener prior to applying torque to ensure accurate readings. The values above are for use with ARP Ultra-Torque®.
**The prices listed on this website are for estimating purposes only. Outside the United States, the prices may be higher due to transportation costs and import duties. Please check with your ARP dealer for actual pricing.
