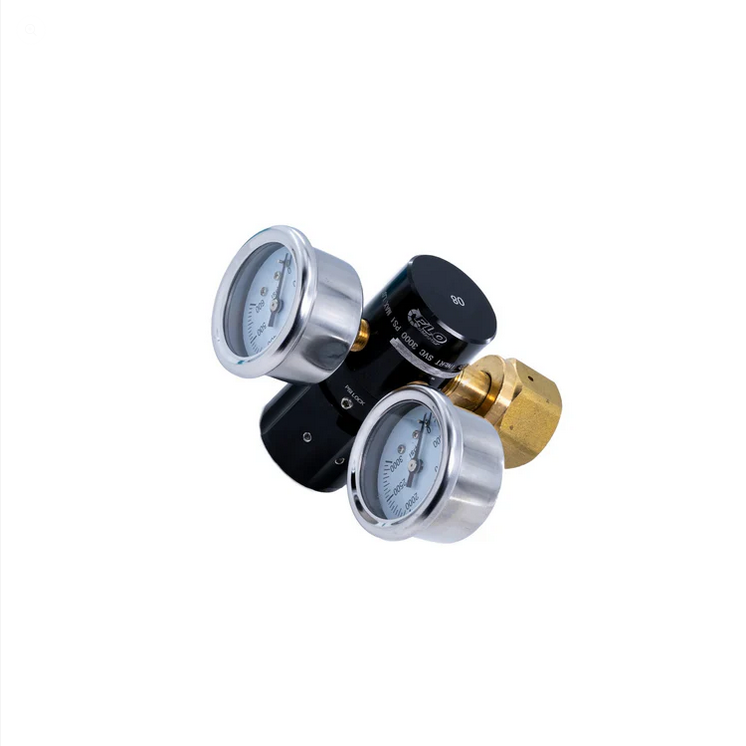

Flo Supply High Flow Adjustable Pressure Regulator Assembly - (0-475psi)
Part NO: 60-30101-
Adjustable Pressure Regulator
- Machined From Light Weight Billet Aluminum
- Black Anodized Finish
- High Flow Capacity (45CFM)
- 3000 psi Max Inlet Pressure
- Adjustable 0-475 psi Outlet Pressure
- Self Venting
- (1) 1/4" NPT Female Inlet (High Pressure)
- (1) 1/4" NPT Female Outlet (Low Pressure)
- (1) 1/8" NPT Female High Pressure Gauge Port
- (1) 1/8" NPT Female Low Pressure Gauge Port
- Pressure Lock Screws Prevent Accidental Changes
- Includes High Pressure and Low Pressure Gauges
- Includes CGA320 Tank Connector and Gasket
- Compatible with Air, CO2, Nitrogen, or Nitrous Oxide
Product Description:
The Flo Supply high flow, compact billet aluminum regulator has an adjustment range from 0-475 psi with an easy to adjust knob for quick pressure changes. The unique pressure lock screw prevents pressure changes due to vibration. These regulators are designed to be used with Air, CO2, Nitrogen, or Nitrous Oxide.
Product Instructions:
60-3010X High Flow Adjustable Pressure Regulator Installation Instructions
