LDM-1/4" EGT-KIT (4 Cylinder) PN:153306
Wanting to add EGT sensors to all (4) cylinders but you're unsure what all is needed? Look no further!

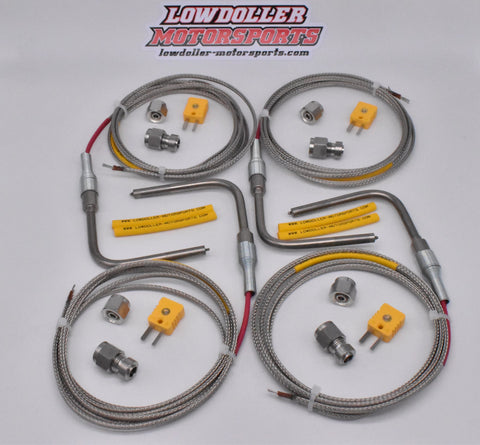

KIT INCLUDES
QTY OF (4) K-TYPE, 0.250’’ OD x 4.5’’ INCONEL PROBE W/ 90° BEND 1.5’’ FROM TRANSITION, 0.080’’ EXPOSED JUNCTION, STAINLESS STEEL TRANSITION W/ LC HIGH TEMP CERAMIC POTTING (2800°F), 72’’/20GA STRANDED WIRE LEAD W/ FLUOROPOLYMER FEP (TEFLON) INSULATION, STAINLESS STEEL OVERBRAID ON WIRE (“R”), OPEN WIRE END NO CONNECTOR OPTION
QTY OF (4) 1/4’’ OR 0.250’’ ID BORE THRU DIRECT WELD FITTING, 316SS SINGLE FERRULE COMPRESSION FITTING ASSEMBLY, CUSTOM 0.050’’ STEP HEIGHT (5/16’’ OR 0.3125’’ DIAMETER)
QTY OF (4) 1/4" X 316SS Plug for WF250 Direct Weld Fittings, A-Lok (Ferrule), Plug Material: 316 Stainless Steel Size: 1/4"A-Lok, Ferrule Material: Stainless Steel Nut Material: Stainless Steel Silver Plated
QTY OF (4) K-TYPE 500 SERIES MINI PLUG, SINGLE SCREW DESIGN RATED AT 525F/274C,
QTY OF (4) LDM-SHRINK
