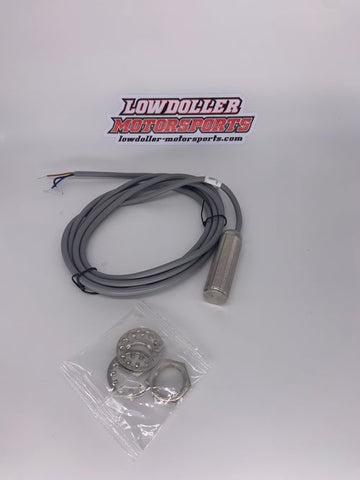

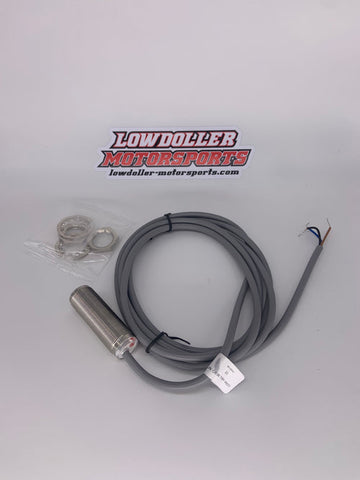

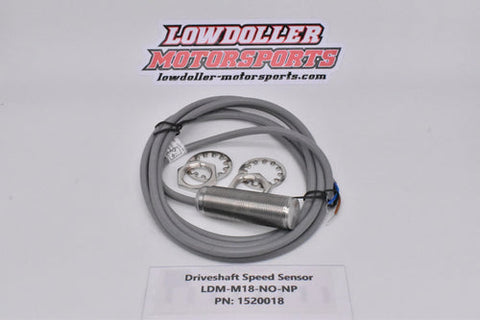

M18 HALL EFFECT SENSOR LDM-HALL-M18-NO-NP PN: 1520018

  • Sale
  • Regular price $150.00 AUD


Description


  • Built in LED indicator light for setup
  • Triggered by ferrous material (Not magnets)
  • M18 body
  • Stainless steel body
  • Detection range 0.1MM to 1MM
  • Flush mount
  • Supply voltage 10V-30V
  • Short circuited/reverse protection built in.
  • Working temperature -13F to 176F
  • IP67 rated (water proof)
  • Normally open signal
  • Max switching frequency 8,000HZ



wiring:

Brown = power supply (10-30VDC)

Blue = Clean ground

Black = Signal wire  (Outputs 0V) to data logger.
