Nitrous Outlet X-Series Weekend Warrior Wet 4150 Nitrous Plate System
Part No : 22-80100- 4150 Flange Wet Nitrous Plate Kit
- X-Series .078" Nitrous and .155" Fuel Solenoids
- Universal Solenoid Brackets and Braided Stainless Hose
- Includes 10lb Bottle, 4an feed line, gasket and Hardware
- Nitrous jetting for 50-175hp
- Fuel Jetting for Gas and E85 for 5, 7, 10, 45, and 55psi
Continuing Innovation:
The Weekend Warrior is a first for Nitrous Outlet as we have never offered our own single billet bar style nitrous plate. It is intended to work with dual-plane intakes, but is equally at home on 4150 flange single plane intakes. Its also a great fit in race classes that require a single billet bar style nitrous plate. We took old technology and applied our R&D knowledge from the Stinger plates to achieve a far superior spray pattern and distribution than any other single billet bar or tube style plate on the market.
Design:
The Weekend Warrior is a single-entry nitrous plate that provides a max flow of 350hp. Could we have made it flow more - absolutely. However, it would have sacrificed what we were really after - spray pattern and distribution. While this may look like every other single billet bar style plate out there, it isn't. We went for a two-piece design so that we could get the discharge angles we needed. This allowed us to get the most even pattern possible in a single billet bar style plate and the most even distribution to go along with it.
Construction:

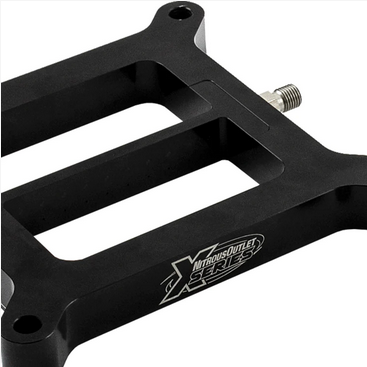

The 4150 plate is manufactured from 6061 billet aluminum. The nitrous plate is .75” thick and black anodized with laser etched logos and Fuel / N2O entry marking. The single billet bar features 10 nitrous discharge holes and 10 fuel discharge holes per side. Premium gaskets are included as well as Jetting for 50-100-150-175 horsepower. We even include fuel jetting for gasoline and E85 for 5, 7, 10, 45, and 55psi fuel pressures! This is an X-Series nitrous plate kit and utilizes a .078 nitrous solenoid and a .155 fuel solenoid. Braided stainless hoses are included to connect the solenoids to the plate, as are universal solenoid brackets. A 10lb X-Series bottle and 4an main feed line are included as well.
Application:
The Weekend Warrior is designed for use with 4150 flange intakes with either a dual-plane or single-plane design. This plate is compatible with carburetion or EFI!
