RIFE DTM 4 Sensor Hub (5v and Sensor Ground Distribution) 52-1503-1

  • Sale
  • Regular price $300.00 AUD


RIFE DTM 4 Sensor Hub (5v and Sensor Ground Distribution)

RIFE

52-1503-1

Racing Use Only, Not Legal for Road Use

RIFE DTM 4 Sensor Hub (5v and Sensor Ground Distribution)

Wiring sensors can be a big task, especially with limited unused 5v reference and sensor ground availability in most ECUs. The RIFE DTM 4 sensor hub fixes this issue and creates an easy to wire solution which internally distributes powers and grounds. This means you can run up to 4 inputs with one single 5v reference and one sensor power without splicing and breaking out the wiring.

This hub allows you to create a location specific branch for wiring which not only distributes power and ground but also allows for a single shielded cable run for simple, lightweight, and easy wiring while being serviceable and easy to add on or change at anytime.

Main Deutsch DT 6 pin wiring plug layout:

  • 5v sensor reference
  • sensor ground
  • Sensor Input 1
  • Sensor Input 2
  • Sensor Input 3
  • Sensor Input 4

Features:

  • Billet machined and anodized case
  • (4) 3 wire DTM style Input connectors
  • (1) 6 wire DT style Main connector
  • (4) Distributed 5v signals
  • (4) Distributed ground signals
  • Internally Board protected circuitry

Optional:

  • Wiring Connector Kit (includes 4 DTM connectors with pins (52-1732 x 4) and 9 ft DT 6 wire main flying lead harness (52-1034 x 1)

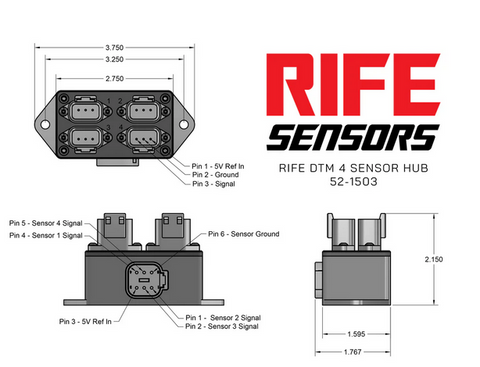

Sizing and wiring reference
