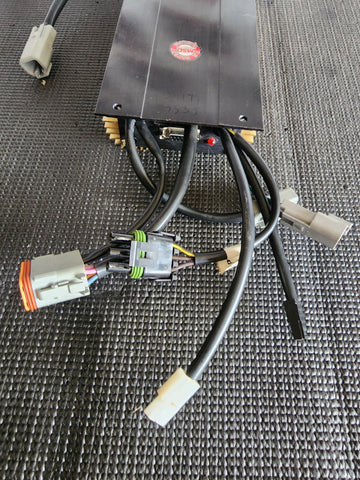

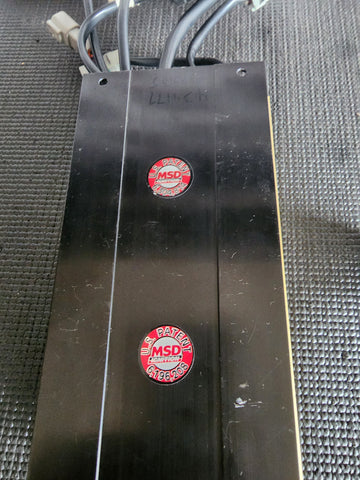

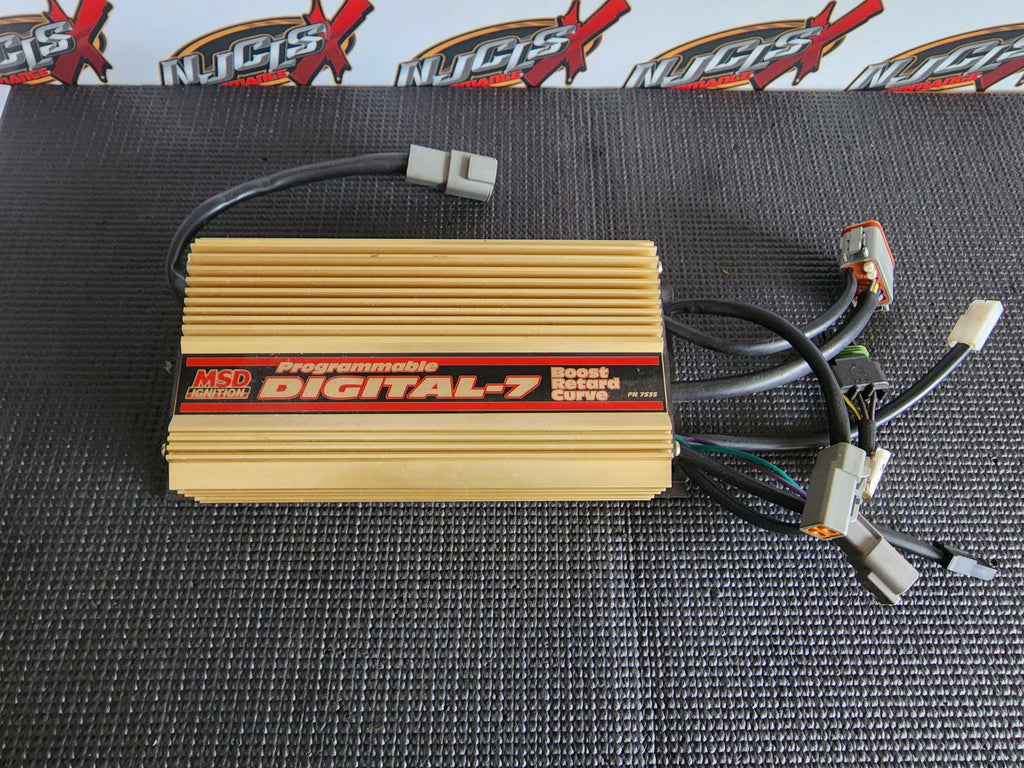

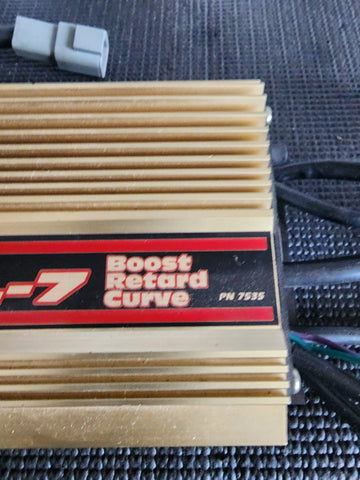

Used msd 7535
comes has pictured
no returns no refunds
price reflects the clearance sale
was in a running ls foxbody 10+years ago
Brand:
Manufacturer's Part Number:
7535
Part Type:
MSD-7535
UPC:
085132075355
Ignition Box Output:
Capacitive discharge
Circuitry:
Digital
Rev Limiter:
Yes
Timing Retard:
Three-stage
Data Acquisition:
No
CD Voltage Output to Coil:
535 V
Current Draw:
1.1 amps per 1,000 rpm
Spark Output (millijoules):
190 mJ
Minimum Operating Voltage:
12 V
Maximum Operating Voltage:
18 V
Length (in.):
9.500 in.
Height (in.):
2.250 in.
Width (in.):
4.500 in.
Ignition Box Color:
Gold
Coil Included:
No
Warranty:
1-year
Quantity:
Sold individually.
Notes:
Requires MAP sensor for the boost circuit. Can be triggered with a points/ECU trigger, a magnetic pickup distributor, or a non-magnetic pickup crank trigger.
